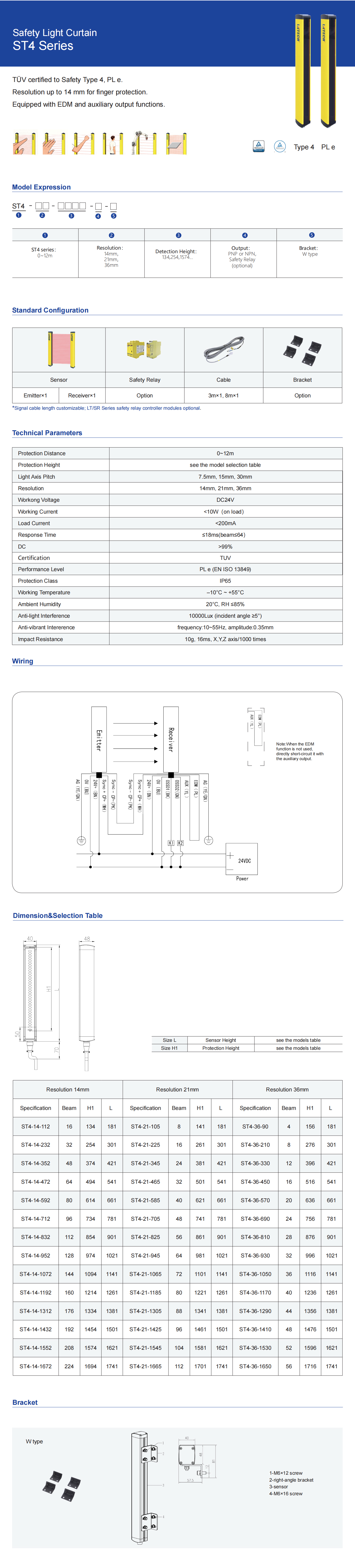

ST4 series safety light curtain(TUV certified)

Features:◆ComplywithTUVType4certification;◆Manyspecificationsandmodels,widerangeofapplication;◆Redundancyandself-checkdesigntoensurethatnoerror signalsenttothecontrolledcircuitwhensafetylightcurt...

product

Features:

◆ Comply with TUV Type 4 certification;

◆ Many specifications and models, wide range of application;

◆ Redundancy and self-check design to ensure that no error signal sent to the controlled circuit when safety light curtain itself fails;

◆ Various fixing methods, easy to install

◆ Good immunity to the surrounding lights and electromagnetic;

◆ Good perfomance of anti-vibration,water and dust;

◆ Good performance and long service life;

◆ Intuitive indication of the sensor’s status, auxiliary alignment;

◆ Dual reverse pulses PNP safe output;

◆ EDM, auxiliary output function.

Parameters:

Protection range	0~12000mm
Protection height	Light axis pitch×(beams-1)
Light axis pitch	7.5mm, 15mm, 30mm
Detection capability	14mm, 21mm, 36mm
Power supply	DC24V
Power consumption	＜10W（no-load）
Loading current	<200mA
Response time	≤18ms(beams≤64)
DC	>99%
Certificate	TUV
Performance level	PL e (EN ISO 13849)
Sealing level	IP65
Operation temp.	–10°C ~ +55°C
Humidity	20°C, RH ≤85%
Immunity to light	10000Lux (Angle of incidence ≥5°)
Anti-vibration	Frequency:10~55Hz, Amplitude:0.35mm
Impact resistance	10g, 16ms,1000times at X,Y,Z axis

Model:

H: protection height, L: sensor height

H1=50mm(The distance of 1st beam center to the bottom end cover)

Resolution 14mm				Resolution 21mm				Resolution 36mm
Model	Beam	H	L	Model	Beam	H	L	Model	Beam	H	L
ST4-14-112	16	112	181	ST4-21-105	8	105	181	ST4-36-90	4	90	181
ST4-14-232	32	232	301	ST4-21-225	16	225	301	ST4-36-210	8	210	301
ST4-14-352	48	352	421	ST4-21-345	24	345	421	ST4-36-330	12	330	421
ST4-14-472	64	472	541	ST4-21-465	32	465	541	ST4-36-450	16	450	541
ST4-14-592	80	592	661	ST4-21-585	40	585	661	ST4-36-570	20	570	661
ST4-14-712	96	712	781	ST4-21-705	48	705	781	ST4-36-690	24	690	781
ST4-14-832	112	832	901	ST4-21-825	56	825	901	ST4-36-810	28	810	901
ST4-14-952	128	952	1021	ST4-21-945	64	945	1021	ST4-36-930	32	930	1021
ST4-14-1072	144	1072	1141	ST4-21-1065	72	1065	1141	ST4-36-1050	36	1050	1141
ST4-14-1192	160	1192	1261	ST4-21-1185	80	1185	1261	ST4-36-1170	40	1170	1261
ST4-14-1312	176	1312	1381	ST4-21-1305	88	1305	1381	ST4-36-1290	44	1290	1381
ST4-14-1432	192	1432	1501	ST4-21-1425	96	1425	1501	ST4-36-1410	48	1410	1501
ST4-14-1552	208	1552	1621	ST4-21-1545	104	1545	1621	ST4-36-1530	52	1530	1621
ST4-14-1672	224	1672	1741	ST4-21-1665	112	1665	1741	ST4-36-1650	56	1650	1741
